Kickstart mechanism

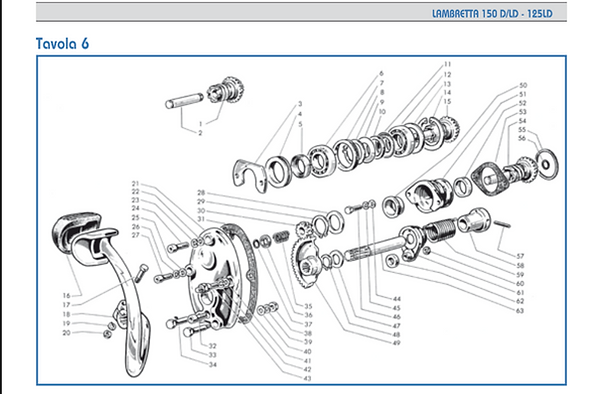

Table 6
LD D 150

Lambretta LD 150 kickstart

Lambretta 150 D produced from Oct 1954 - Dec 1956

Lambretta 150 LD  produced from Nov 1954 - Jan 1957

Lambretta 125 LD  produced from Jan 1956- Nov 1956

Lambretta 125 LD '57 produced from Dec 1956- July 1958

Lambretta 150 LD '57 produced from Jan 1957 - July 1958

Online Lambretta shop coming soon

We are in the process of creating our online Lambretta shop. If your items are not available online, please call or e-mail your order as we probably have them in stock in our Lambretta shop.
020 8748 0882 or info@scootersurgery.co.uk

Lambretta LD 150 kickstart, Kick start mechanism, Bevel pinion, ball bearing,
No 1 - '54-'55 - Bevel pinion, straight teeth (11M 400), Casa code R105, Innocenti
code 07110403
Lambretta LD150, kickstart box, kickstart pedal, Lambretta D 150, kickstart cover
No 1 - '54-'55 - Bevel pinion, Zerol teeth (11M 400), Casa code R106, Innocenti
code 07110405

No 2 - '54-'55 - Shaft for bevel pinion, Casa code R107, Innocenti code 07110421

No 3 - '55 - Flange, retaining bearing (11M 400/1), Casa Lambretta code R148,
Innocenti code 11110441

No 4 -  '55 - Ring, for kickstart pinion packing (11M 400/1), Casa Lambretta code
R147, Innocenti code 11110442

No 5 - '55 -  Oil seal, for pinion (20x30x7), Casa Lambretta code 439, Innocenti
code 11110443

No 6 - '55 - Ball bearing, for pinion (11M 400/1), Casa Lambretta M206, Innocenti
code 07330207
Lambretta LD 150 kickstart, Kick start mechanism, Bevel pinion, ball bearing,
No 7 - '55 - Spacer, for bearings, Innocenti code 11110445

No 8 - '55 - Circlip, for washer (11M 400/1), Casa code 255, Innocenti code
73260020
Lambretta LD150, kickstart box, kickstart pedal, Lambretta D 150, kickstart cover
No 9 - '55 -  Spring washer, for bearings (11M 400/1), Casa code R86, Innocenti
code 07330214

No 10 - '55 - Thickness washer (11M 400/1), Casa Lambretta code R87, Innocenti
code 07330212

No 11 -  '55 -  Spring washer, for bearings (11M 400/1), Casa Lambretta code R86,
Innocenti
code 07330214

No 12 -  '55 - Ball bearing, for pinion (11M 400/1), Casa code M206 Innocenti code
07330207

No 13 - '55 -  Shim for pinion (11M 400/1), Casa code R85 Innocenti code
11110446
Lambretta LD150, kickstart box, kickstart pedal, Lambretta D 150, kickstart cover
No 14 - '55 -  Circlip, retaining bearing (11M 400/1), Casa code 249 Innocenti
code 73234217

No 15 - '55 - Bevel pinion, straight teeth (11M 400/1), Casa Lambretta
code R104 Innocenti code 11111187

No 15 - '55 - Bevel pinion, Zerol teeth 11M 400/1, Casa Lambretta R103
Innocenti code 11111189

No 16 - 150 D - Rubber protection, kickstart pedal (D) Casa Lambretta C39/b
Innocenti code 11110437

No 16 - 150 LD '55-'56 - Rubber protection, kickstart pedal (LD), Casa code C41,
Innocenti code 12110438

No 17 - All - Screw, locking kickstart pedal, Casa code 52, Innocenti code 70300635

No 18 - 150 D - Pedal kickstart, Casa code M353, Innocenti code 11110409

No 18 - LD '55-'56 - Pedal kickstart, Casa code M281, Innocenti code 12111091

No 19 - All - Spring washer, for nut at fig 20, Casa code 172, Innocenti
code 73170064

No 20 - All - Nut for screw at figure 17, Casa Lambretta code B68, Innocenti
code 72030006

No 21 -  '54-'55 - Cover smooth for kickstart box (11M 400), Casa Lambretta code
R91, Innocenti code 07110402

No 21 - '55 -  Cover with small dome, kickstart box (11M 400/1), Casa Lambretta
code R92, Innocenti code 11110439

No 22 - All - Plain washer, for screw at fig. 24, Casa Lambretta B63, Innocenti
code 02110110

No 23 - All - Spring washer for screw at fig. 24, Casa Lambretta code B61
Innocenti code 02110111
Lambretta LD 150 kickstart, Kick start mechanism, Bevel pinion, ball bearing,
No 24 - All - Nut, Screw fixing kickstart cover, Casa code 299, Innocenti code
71060630

No 25 - All -  Plain washer, for screw at fig 27, Casa code B63, Innocenti code
02110110

No 26 - All - Spring washer, for screw at fig 27, Casa Lambretta code B61,
Innocenti code 02110111

No 27 -  All -  Screw, fixing kickstart cover, Casa Lambretta code B59, Innocenti
code 71060618

No 28 -  All - Washer, for bevel pinion, Casa code R97 Innocenti code
07110407

No 29 - All -  Circlip, retaining bevel pinion, Casa code 258 Innocenti code
73260022

No 30 -'54-'55 -  Pinion, kickstart, Casa code M160 Innocenti code 02110435
Lambretta LD150, kickstart box, kickstart pedal, Lambretta D 150, kickstart cover
No 31 - All - Gasket, kickstart cover, Casa Lambretta code 1210 Innocenti code
07110417

No 32 - All - Screw, fixing support ring to cover, Casa Lambretta B59 Innocenti
code 07110413

No 33 - '55-'56 - Screw, fixing kickstart cover (11M 400/4 400/6), Casa Lambretta
R109 Innocenti code 11110450

No 34 - '55-'56 - Screw, fixing kickstart cover (11M 400/4 400/6), Casa code 63,
Innocenti code 111110449

No 35 - All - Spring, for kickstart bevel pinion, Casa code R96, Innocenti code
02110420

No 36 - All - Washer for spring, Casa code R95, Innocenti code 07110438

No 37 - All - Circlip, kickstart bevel pinion pin, Casa code R94, Innocenti code
021110429

No 38- All - Nut for screw at figs 33, 34, Casa code 123, Innocenti
code 72060006

No 39 -All - Spring washer for nuts at fig 38, Casa Lambretta code 172, Innocenti
code 731700064

No 40 -  All - Plain washer for nuts at fig 38, Casa Lambretta code 182, Innocenti
code 73030064

No 41 - All -  Plain washer for screw at fig 43, Casa Lambretta code B63, Innocenti
code 02110110

No 42 - All - Spring washer for screw at fig 43, Casa Lambretta B61, Innocenti
code 02110110

No 43 - All - Threaded pin, fixing cover, Casa Lambretta code R93
Innocenti code 11110408

No 44 - All - Plain washer, for screws at fig 46, Casa code 181, Innocenti code
73010053

No 45 - All -  Spring washer, for screws at 46, Casa code 171, Innocenti code
73170053

No 46- All - Screw, fixing bevel pinion support, Casa code 33, Innocenti code
70360516
Lambretta LD 150 kickstart, Kick start mechanism, Bevel pinion, ball bearing,
No 47 -  All -  Spacing washer, Casa Lambretta code R98, Innocenti code 06110422

No 48 -  All - Circlip, retaining pin, Casa code 231 Innocenti code 73260015

No 49 -'54 -'55 -  Notched quadrant, Casa code M153 Innocenti code
07110404

No 50 - All -  Bush for bevel pinion, Casa code M233 Innocenti code 11110423

No 51 - All - Support, bevel pinion with bushes at fig 50, 52, Casa Lambretta
code R101 Innocenti code 11111061

No 52 - All - Bush, bevel pinion, Casa Lambretta R102 Innocenti code

No 53 - All - Gasket for pinion support, Casa code 1211, Innocenti code 07110418

No 54 - All - Bevel pinion, with pin, straight teeth, Casa code R104, Innocenti
code 11111183

No 54 - All - Bevel pinion, with pin Zerol teeth, Casa code R103, Innocenti
code 11111184

No 55 -All - Seal ring, for bevel pinion bush, Casa Lambretta code 454, Innocenti
code 99091221
Lambretta LD150, kickstart box, kickstart pedal, Lambretta D 150, kickstart cover
No 56 -  All - Circlip, kickstart bevel pinion pin, Casa Lambretta code R94,
Innocenti code 02110429

No 57 - All -  Pin, stopping return spring, Casa Lambretta code R100, Innocenti
code 02060115

No 58 - All - Stop, for spring guide, Casa code R99, Innocenti code 02110431

No 59 - All - Return spring, kickstart pedal, Casa Lambretta code M154
Innocenti code 02110411

No 60 - All - Nut, for screw at fig 32, Casa code 119, Innocenti code 72090006

No 61 - All -  Centering support, kickstart cover, Casa code M247, Innocenti code
11110415

No 62 - All - Ring stopping notched quadrant, Casa Lambretta code M132,
Innocenti code 07111031
Lambretta LD 150 kickstart, Kick start mechanism, Bevel pinion, ball bearing,
No 63 -  All -  Axle, kickstart pedal, Casa Lambretta code M156/B, Innocenti
code 0711412


Lambretta LD 150, Lambretta D 150, Lambretta LD 125
